PGSM CARRIAGE – EVO

Pre-stretch carriage with single motorization, which allows the stretch film to be pulled at fixed values up to 344% and apply up to 12 containment force values on the pallet. Optional kits are available for pre-stretch other than standard. The adjustment of the placing force on the pallet is controlled by an analog system. The carriage is equipped with a reel h. 20″ (STD) or with the optional h. 30”.

PGSA EVO CARRIAGE

Pre-stretch carriage with double independent motorization, which allows to pre-stretch the film from the control panel, with a 150% -400% range and control system through inverter. It is possible to apply up to 12 force containment values on the pallet. The carriage is equipped with a reel h. 20″ (STD) or with the optional h. 30”. The adjustment of the containment force on the pallet is controlled by a reactive system based on the CUBE TECHNOLOGY Level 1.

SCSP/2 EVO CARRIAGE

Pre-stretch carriage with double motorization SSC independent, which allows the stretch film to be pre-stretched from the control panel, with a 150% -400% range and with control system through inverter. It is possible to apply up to 12 containment force values on the pallet. The carriage is equipped with a reel h. 20″ (STD) or with the optional h. 30”. The adjustment of the application force on the pallet is controlled by a PROACTIVE system based on the CUBE TECHNOLOGY Level 1 and Level 2

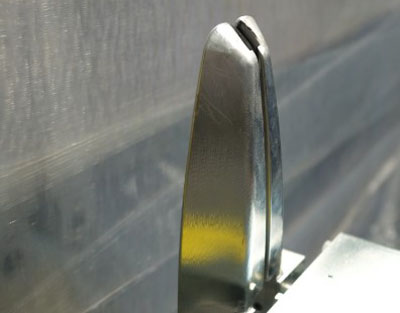

EVO PINCERS CLAMP

Standard clamp equipped with a system for cutting the film through a hot wire. Also available in the version with double driver for independent movement of the two pincers, ideal for pallets of varying size.

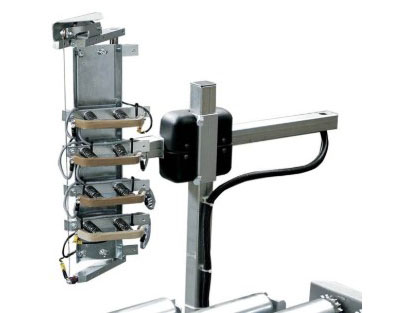

HOT PLATE SEALER

Hot plate device to fix the final edge of the film during wrapping cycle on the previous turn. The film is cut by means of the hot wire. The sealing plates are mounted on springs to adapt to the surface of the product, and the sealing time can be set from the control panel.

EVO SPRING CLAMP

Optional system for clamping, cutting and sealing the film, which occurs without contact with the product. The device works through spring steel (Patent), with a proportional reduction of the film band and is complete with an air blower device to seal the initial edge of the film within the wrapping. The device is specifically designed to guarantee perfect finishing of the end edge of the film by electronically controlled impulse sealing on constant film thickness. The final sealing of the film takes place on a mechanical support, accurately avoiding direct contact with the product. Also available in the version with horizontal movement, mobile and liftable.

NIP AND TUCK CLAMP

Optional device for clamping, cutting and threading the film without sealer. The last tail of the wrapping film is inserted into the winding itself.

VERTICAL PRESSURE PLATEN

Pallet retaining system during wrapping which can be used with the upper covering systems (Top Inside/Top Outside) or with particularly unstable loads. Available in versions with mechanical movement by means of pantograph system or pneumatic drive.

PALLET LIFTER

Pallet lifting system in the conveyor in the center of the machine with pneumatic drive or hydraulic drive, thanks to which complete wrapping of the wooden pallet is possible. This system enables you to manage wrapping of the product and pallet in an extremely flexible manner, guaranteeing maximum stability of the palletized load. The pneumatic lift has a maximum capacity of 4400 lbs., while the hydraulic system has a capacity of more than 4400 lbs.

TOP COVER

Automatic system for covering the upper surface of the pallet. Available in the version Top Inside version integrated in the structure of the machine to obtain a cover against dust and water, or in the Top Outside version with independent structure, to be able to achieve a dust-proof cover.

ROPING DEVICE

Optional system to reduce the width of the film to a “cord” and ensure a more effective stabilization of the load.

VCA CORNER APPLICATOR

Thanks to a special control system (patented ROBOPAC), the gripping and application devices are able to “locate” in a fully automatic way the four corners of the pallet without any manual setting or adjustment of the system.
