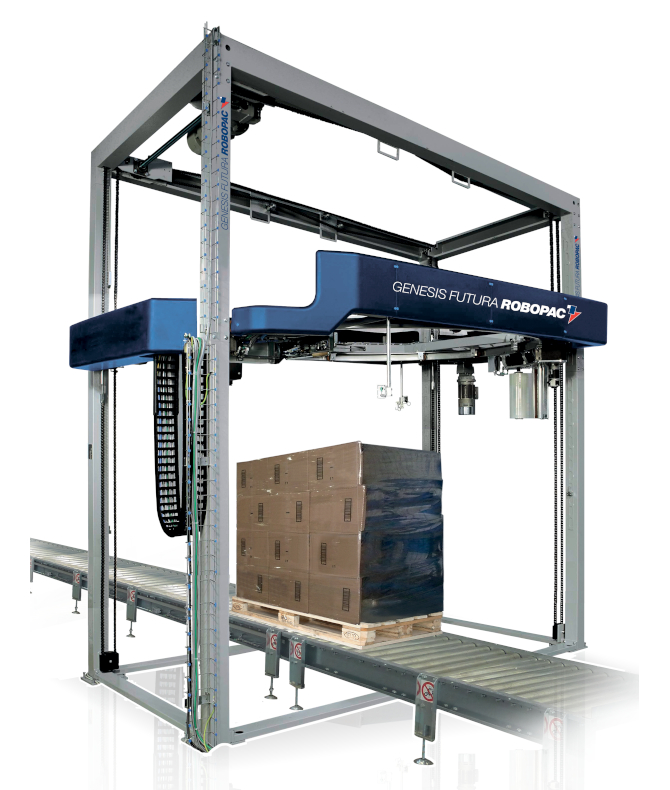

Genesis Futura XL – Rotary Ring Stretch Wrapper for Extra-Large Pallet Loads
Engineered for Oversized Loads. Designed for High Efficiency.
The Genesis Futura XL is Robopac’s most capable automatic rotary ring stretch wrapper, built to handle extra-large pallet loads with precision, speed, and reliability. Designed for high-volume operations, the Futura XL features an oversized ring that accommodates pallet sizes up to 75” x 75”, making it ideal for bulky or irregular loads.
With a 30 RPM ring speed and a throughput capacity of up to 60 pallet loads per hour, the Genesis Futura XL delivers performance without compromise—minimizing floor space usage and maximizing uptime.
Key Features:
-
Wraps up to 60 loads/hour
-
Supports pallet sizes up to 75” x 75”
-
30 RPM rotary ring speed
-
Robust and flexible frame design for industrial use
-
Available Options:
-
30” Film Carriage
-
Film Roping
-
Top Cover Placement
-
Top Pressure Hold Down
-
Pallet Lifter
-
Auto Corner Board Placement
-
R-Connect® for remote monitoring and analytics
-
Backed by Robopac’s commitment to Innovation Driven by Value, the Genesis Futura XL combines advanced automation, superior load stability, and reduced maintenance to offer a powerful return on investment.
PRE-STRETCH CARRIAGE
BSCSP CARRIAGE
Carriage with single motorization on-board with automatically recharged batteries to obtain film pre-stretching since the beginning of the wrapping process.
Possibility to pre-stretch the stretch film at fixed values up to 300%. Optional kits are available for pre-stretch other than standard. The adjustment of the containment force on the pallet is reactive and controlled by an analog system.
CLAMPS
FUTURA CLAMP
Pneumatically driven clamp unit with hot wire film cutting which incorporates also the device for final sealing of the film tail on the contrast.
NIP AND TUCK CLAMP
Optional device for clamping, cutting and threading the film without sealer. The last tail of the wrapping film is inserted into the winding itself.
MAIN OPTIONS
VERTICAL PRESSURE PLATEN
Pallet retainer system during wrapping, mandatory with upper covering systems (Top Inside / Top Outside) or with particularly unstable loads.
TOP COVER
Automatic system for covering the upper surface of the pallet. Available in the version Top Inside version integrated in the structure of the machine to obtain a cover against dust and water, or in the Top Outside version with independent structure, to be able to achieve a dust-proof cover.
PALLET LIFTER
Pallet lifting system in the conveyor in the center of the machine with pneumatic drive or hydraulic drive, thanks to which complete wrapping of the wooden pallet is possible. This system enables you to manage wrapping of the product and pallet in an extremely flexible manner, guaranteeing maximum stability of the palletized load. The pneumatic lift has a maximum capacity of 4400 lbs., while the hydraulic system has a capacity of more than 4400 lbs.
ROPING DEVICE
Optional system to reduce the width of the film to a “cord” and ensure a more effective stabilization of the load.
VCA CORNER APPLICATOR
Thanks to a special control system (patented ROBOPAC), the gripping and application devices are able to “locate” in a fully automatic way the four corners of the pallet without any manual setting or adjustment of the system.
ARC REEL CHANGE
| Performance | |
| Loads/HR | 60 |
| RPM | 30 |
| Load Capacity | |
| Max Load Dimensions (W X L) | 76 x 76 |
| Min Load Dimensions (W X L) | Min Load Dimensions (W X L) |
| Machine Structure | |
| Frame Construction | Painted Metal |
| Film Delivery System |
| Operator Interface | |
| Wrapping Menus | 16 |
| Utility Requirements | |
| Safety Features | |
| CE Safety-Cat 3 | YES |
| UL 508A Compliant | YES |
| 30" Film Carriage |
| Air Conditioning |
