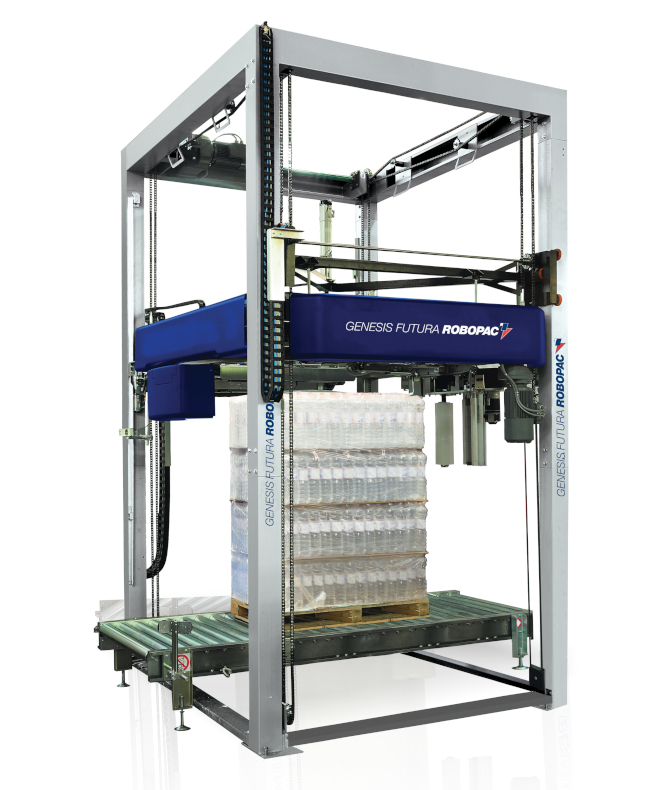

Genesis Futura L – Rotary Ring Automatic Stretch Wrapper for Oversized Loads
High-Capacity Wrapping. Maximum Flexibility. Built for Bigger Loads.
The Genesis Futura L is a rugged, high-performance rotary ring stretch wrapper designed to handle oversized pallet loads with speed, precision, and reliability. With a 34 RPM ring speed and throughput of up to 65 loads per hour, it’s ideal for operations requiring flexibility in load sizes without compromising on efficiency.
Thanks to its oversized ring design, the Genesis Futura L accommodates pallet loads up to 57” x 57”—making it perfect for non-standard or large-format goods.
Key Features:
-
Wraps up to 65 loads/hour
-
Supports pallet sizes up to 57” x 57”
-
34 RPM wrapping speed
-
Rotary ring design for consistent high-speed performance
-
Available Options:
-
30” Film Carriage
-
Roping
-
Top Cover Placement
-
Top Pressure Hold Down
-
Pallet Lifter
-
Auto Corner Board Placement
-
R-Connect® for remote diagnostics and performance insights
-
Robopac’s commitment to Innovation Driven by Value ensures the Genesis Futura L offers advanced technology with long-term operational benefits. It’s the ideal choice for facilities seeking to boost productivity while reducing total cost of ownership.
PRE-STRETCH CARRIAGE

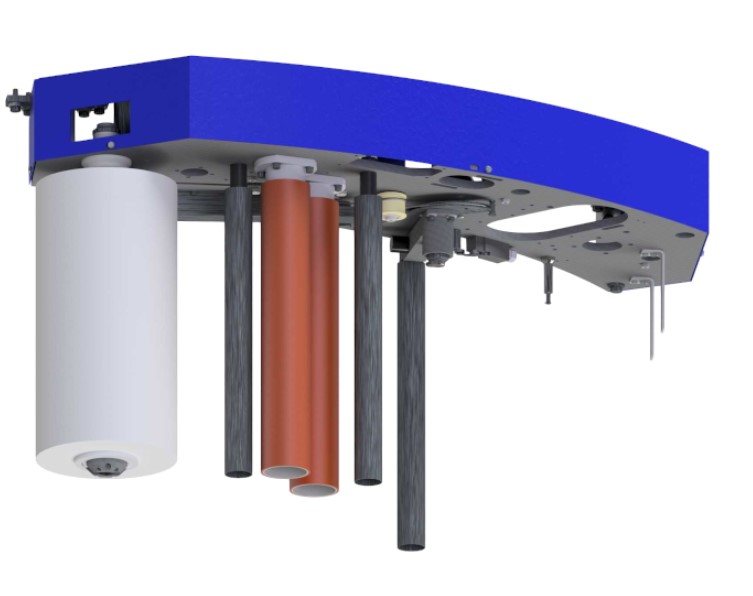

BSCSP CARRIAGE
Carriage with single motorization on-board with automatically recharged batteries to obtain film pre-stretching since the beginning of the wrapping process.
Possibility to pre-stretch the stretch film at fixed values up to 300%. Optional kits are available for pre-stretch other than standard. The adjustment of the containment force on the pallet is reactive and controlled by an analog system.
CLAMPS

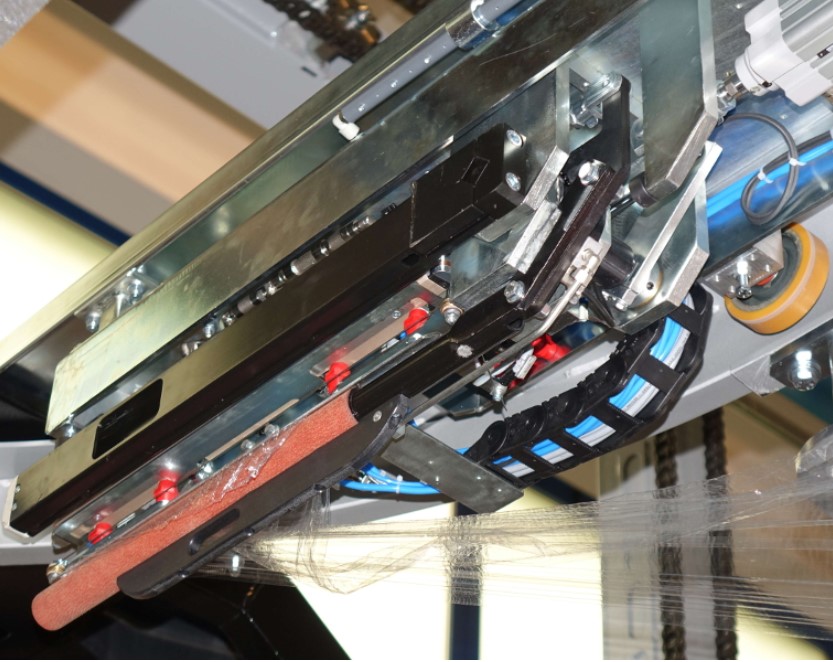

FUTURA CLAMP
Pneumatically driven clamp unit with hot wire film cutting which incorporates also the device for final sealing of the film tail on the contrast.

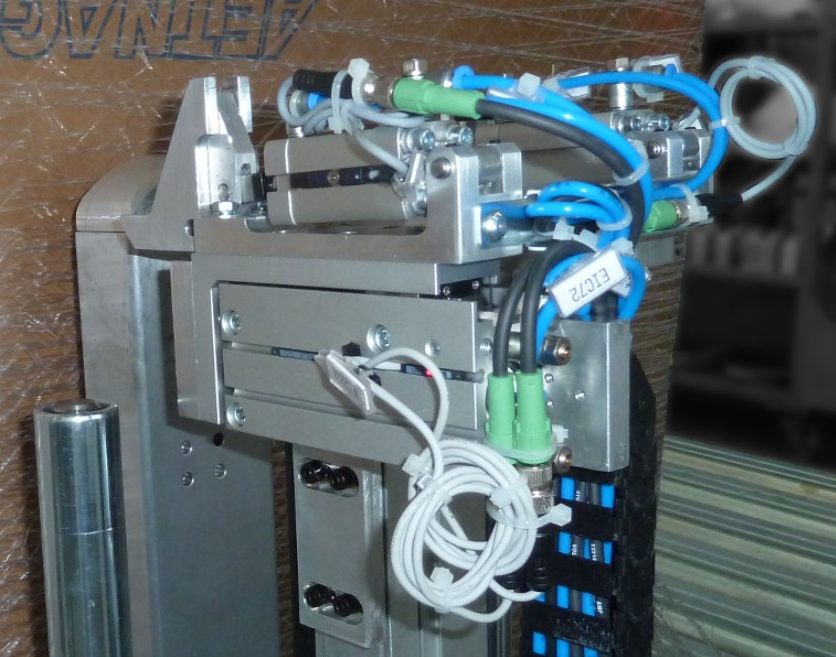

NIP AND TUCK CLAMP
Optional device for clamping, cutting and threading the film without sealer. The last tail of the wrapping film is inserted into the winding itself.
MAIN OPTIONS

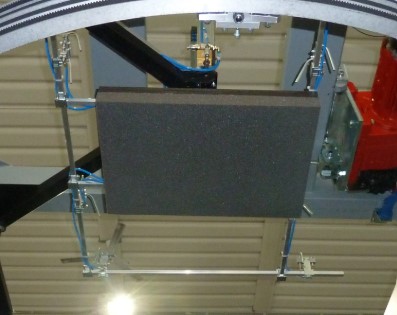

VERTICAL PRESSURE PLATEN
Pallet retainer system during wrapping, mandatory with upper covering systems (Top Inside / Top Outside) or with particularly unstable loads.

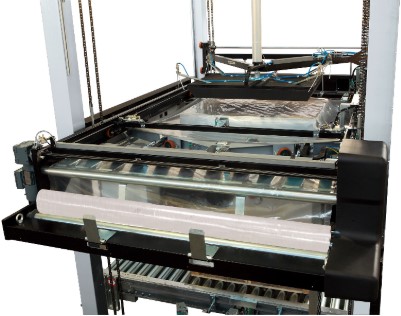

TOP COVER
Automatic system for covering the upper surface of the pallet. Available in the version Top Inside version integrated in the structure of the machine to obtain a cover against dust and water, or in the Top Outside version with independent structure, to be able to achieve a dust-proof cover.

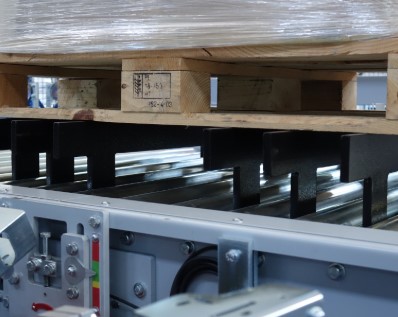

PALLET LIFTER
Pallet lifting system in the conveyor in the center of the machine with pneumatic drive or hydraulic drive, thanks to which complete wrapping of the wooden pallet is possible. This system enables you to manage wrapping of the product and pallet in an extremely flexible manner, guaranteeing maximum stability of the palletized load. The pneumatic lift has a maximum capacity of 4400 lbs., while the hydraulic system has a capacity of more than 4400 lbs.

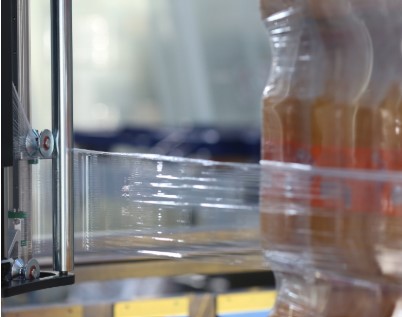

ROPING DEVICE
Optional system to reduce the width of the film to a “cord” and ensure a more effective stabilization of the load.

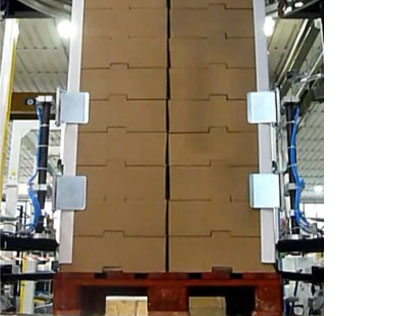

VCA CORNER APPLICATOR
Thanks to a special control system (patented ROBOPAC), the gripping and application devices are able to “locate” in a fully automatic way the four corners of the pallet without any manual setting or adjustment of the system.

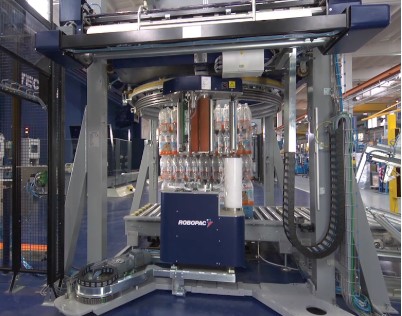

ARC REEL CHANGE
| Performance | |
| Loads/HR | 65 |
| RPM | 34 |
| Load Capacity | |
| Max Load Dimensions (W X L) | 58 x 58 |
| Min Load Dimensions (W X L) | Min Load Dimensions (W X L) |
| Machine Structure | |
| Frame Construction | Painted Metal |
| Film Delivery System |
| Operator Interface | |
| Wrapping Menus | 16 |
| Utility Requirements | |
| Safety Features | |
| CE Safety-Cat 3 | YES |
| UL 508A Compliant | YES |
| 30" Film Carriage |
| Air Conditioning |
